EASY INGEST
Multi-Channel Multi-Format Ingest4K/HD/SD SDI & NDI & IP
(KOLAY YUTMA Çok Kanallı Çok Formatlı Kayıt 4K/HD/SD SDI & NDI & IP)

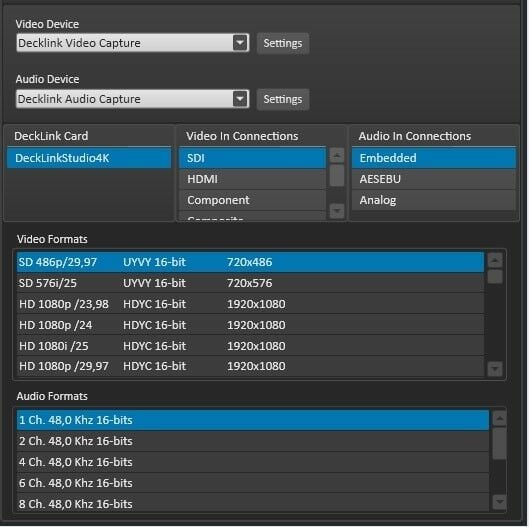

Supported Inputs
Easy Ingest accommodates a broad spectrum of input types; UHD / HD / SD SDI, HDMI, and Analogue sources. Additionally, it caters to NDI sources, Unicast or Multicast ASI or IP sources. Its versatility also extends to DVB-ATSC MPEG TS Input sources such as MPTS ( Multi Program Transport Stream) and SPTS ( Single Program Transport Stream ) and protocols such as UDP, SRT, RTSP, RTMP, RTP, HLS, and MPEG DASH.
Easy ingest helps to manage recorded files automatically record in a local, NAS, or SAN drive. Easy ingest split function helps users divide recorded files as frame-accurate while ingest operation is ongoing. After creating every split file, needs to move any selected destination, and delete the source, what happens if the destination is temporarily or permanently unavailable, Easy ingest file manager gives alternative storage destination options to protect valued records.
Graphics Overlay
Easy Ingest overlays picture, Time, and Date separately or together on Each Recorded File or Stream with different combinations
Scheduled Record
Easy Ingest could record continuously 365/24/7, Schedule record helps to record daily, weekly, or on some selected days of the week could be set to record.
Streaming Output
While ingesting a source, at the same time source could be sent to single or multiple destinations such as SRT, unicast, multicast, UDP, RTP, RTMP, or to Youtube, Facebook, or Twitter
Edit while Ingest
Easy ingest supports growing files, which means when you press the record button, editors could begin to edit the recording file with Adobe Premiere, GV Edius, DaVinci Resolve, or any edit while ingest-supported editing software can begin to use Easy Ingest file while ingesting.
Split While Ingest
Broadcast recording systems are running 24/7. while ingest system is running long term, to have a single and very big file is not useful for operations, Easy ingest split function solves this issue as frame-accurate, If the user stops and starts the record operation, the operation could break down, with the help of split function, the user could have filed for every 30 mins or any set duration and each file is back to back as frame accurately
Convertions
Easy Ingest support to convert any frame Rate, Aspect Ratio, and Resolution inputs into desired output aspect ratio, frame rate, and resolutions. It helps broadcasters' system standards with inside conversions.
Supported Formats, Resolutions
Easy Ingest supports; Supported Codecs and Wrappers; XDCAM, DNXHD, MXF, DVCPro, MOV, MPEG-2, MPEG-4, H264 GPU and CPU, H265 GPU and CPU • SD Video Standards 525i59.94 NTSC, 625i50 PAL • HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 • Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120 • SDI Compliance SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2036-1, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE 2081-12, SMPTE 2082-10, SMPTE 2082-11, SMPTE 2082-12 and SMPTE ST2108‑1 • SDI Metadata
Support RP 188/SMPTE 12M-2 and closed captioning. • Audio Sampling Television standard sample rate of 48 kHz at 24‑bit. • SDI Video Sampling 4:2:2, 4:4:4 • SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 8Kp30 DCI, and 8, 10-bit YUV 4:2:2 in all modes. • Color Space REC 601, REC 709, REC 2020.
Custom User Interface
Easy ingest is flexible to use for different record purposes, while using it as a single application or multiple ingest nodes in a single server needs different views, Easy ingest user interface could be customizable according to the use case and these settings can recall the last user interface settings.
Media Asset Management integration
Easy ingest could be integrated with any MAM solution via XML and watch folders. Besides other brands of MAM integration, Easy Ingest is fully integrated with Easy MAM, While users ingest a source, at the same time they can enter meta tags for the recorded content, each content going to the storage, and information of the content is automatically entered into the Easy MAM database, Editors or playout operators could begin to use files while the ingest operations are going on
Remote Client Application
Multiple ingest applications can run in a server and besides running multiple applications, multiple servers could be needed to be used in broadcast operations, how the operator could control all these applications Easy Ingest Client application helps to solve this problem. It communicates all Easy ingest applications via TCP/IP protocol and users could preview video and audio and select the template and run, check all of them.
VTR Control & Batch Capture
If you have a large collection of Betacam or digital Betacam tapes that you want to digitize, you need a fast and efficient way to ingest them into your computer. That's why we recommend using Easy Ingest RS422 VTR control and batch capture. This feature allows you to control your tape deck from your software interface, capture multiple channels of UHD, HD, and SD content from various sources, adjust audio levels, mark in and out points, import capture lists from other systems, and support closed captions. With Easy Ingest, you can save time and hassle while preserving the quality of your tapes.
